Ideal Use Environments
Ideal Use Environments
Chemical & Oil Drum Storage
Hazardous Liquid Handling Zones
Industrial Drum Storage Areas
Chemical & Pharma Plants
Heavy Duty 2 Drum Chemical Spill Pallet – 50L, DIBt-Approved Polymer
Heavy Duty 2 Drum Chemical Spill Pallet – 50L, DIBt-Approved Polymer
(GST and Freight calculated during check out)
Couldn't load pickup availability

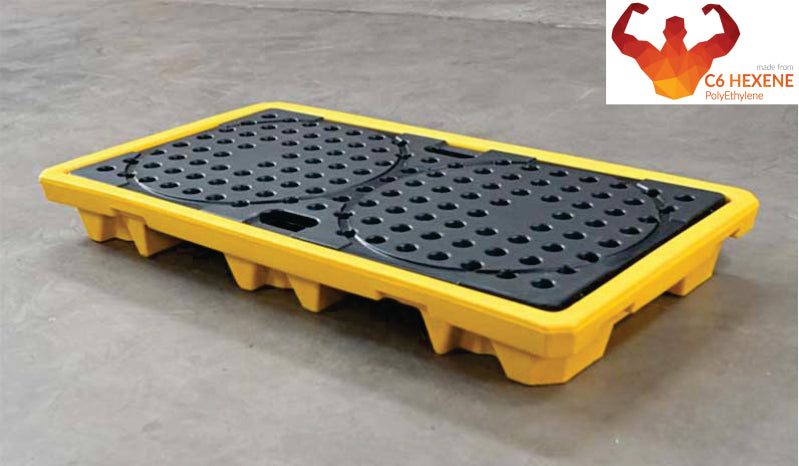

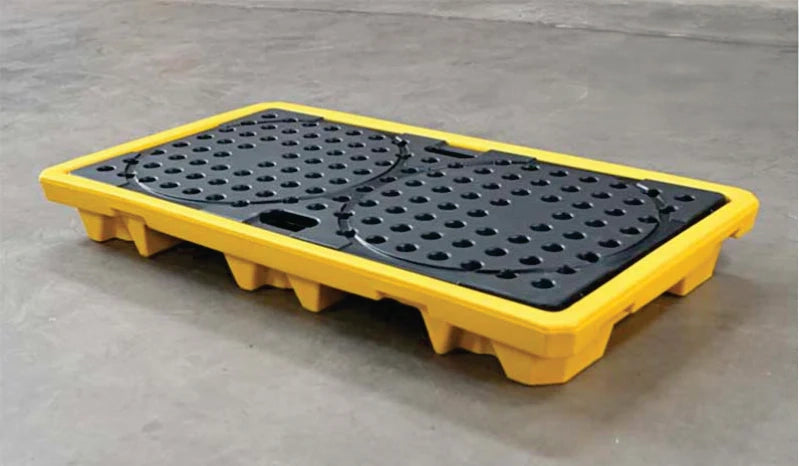

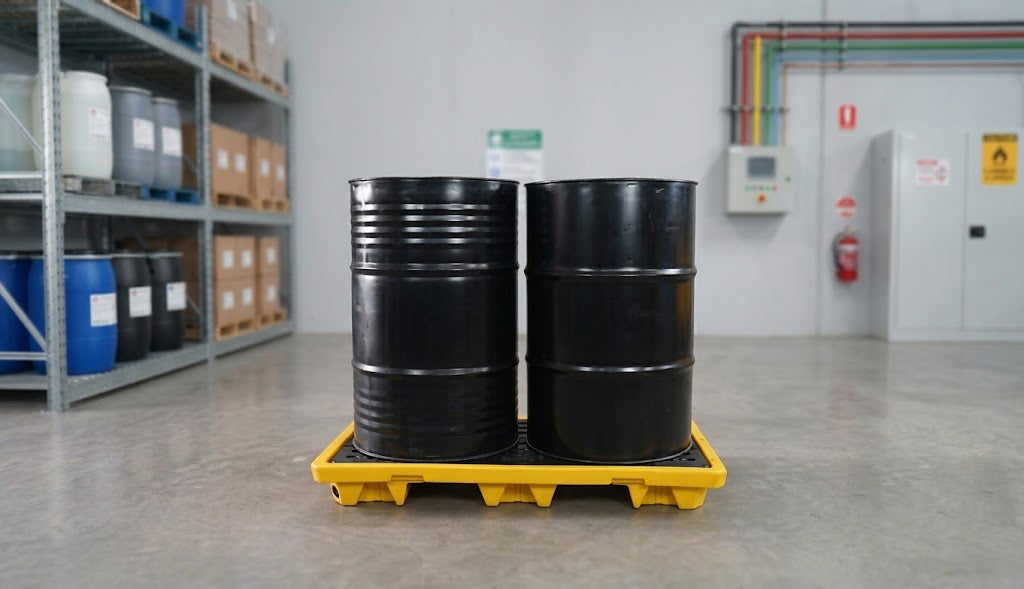

The Frontier SpillSafe 2 drum spill pallet is a heavy duty spill pallet for safe storage of two 200 litre drums of oil and chemicals. Its low-profile 50 L sump catches leaks, drips and spills, and the pallet carries a 1,000 kg static load, enough for two full steel drums. The sump is moulded from DIBt-approved metallocene polymer (PE-MD), stronger than LDPE and more flexible than HDPE, making it a dependable chemical spill pallet and spill pallet for acids, alkalis and hazardous liquid storage. Also called a bund pallet, sump pallet or drum spill tray, it works as a secondary containment pallet for indoor drum storage.
- 50 L spill containment capacity (including grating)

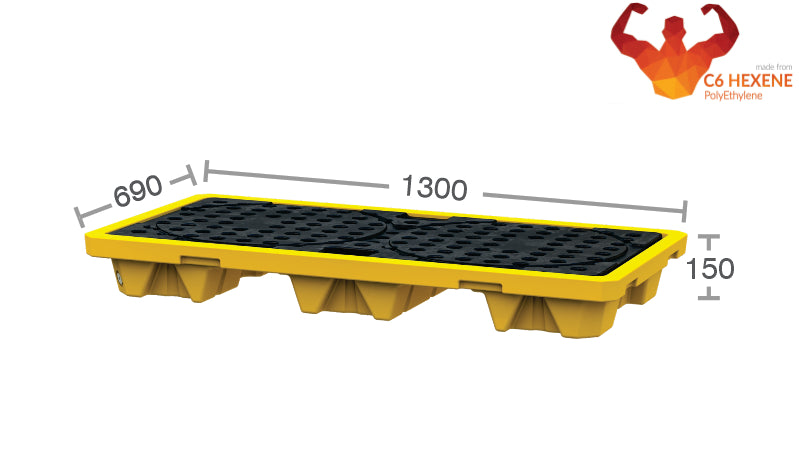

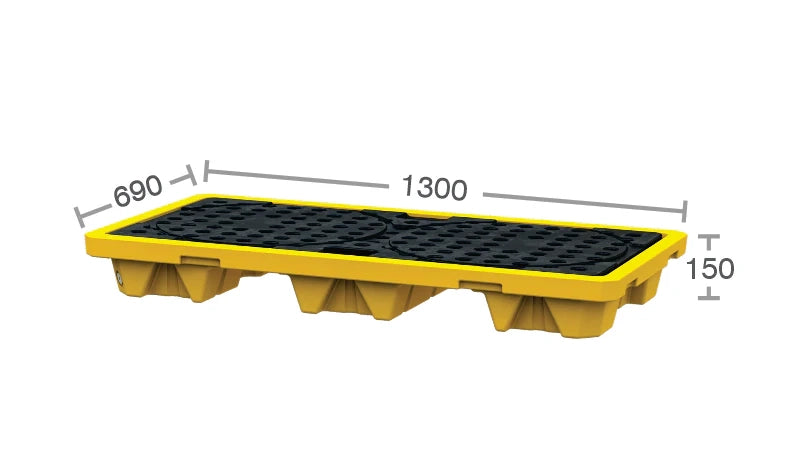

- 1300 (L) × 690 (W) × 150 (H) mm, low profile spill pallet
- 1,000 kg static load for two full 200 litre drums
- Sump in DIBt-approved metallocene polymer (PE-MD)
- Reversible 100% PE grating: drum-alignment side and flat side
- Built-in grating handle, no FRP splinters
- Deep internal ribs for structural support
- One-piece moulded sump with drain plug for controlled emptying
- 2-way forklift and pallet-truck entry (550 mm fork width)
- Nestable for space-saving storage
- For 2 × 200 / 210 litre drums (barrels), steel or plastic
- Used in chemical plants, pharma units, paints and coatings units, laboratories and warehouses
Durability Strength
1,000 kg static load in DIBt-approved PE-MD.
Spill Containment
50 L moulded sump catches leaks and drips.
Safety Features
100% PE grating, no fibreglass splinters.
Reversible PE Grating
Drum-alignment side and flat side.
Drain Plug For Easy Draining of Contained Liquid
Controlled emptying of the sump.
Effective Spill Management
Secondary containment for oil and chemical drums.
Request A Quote
Product: Heavy Duty 2 Drum Chemical Spill Pallet – 50L, DIBt-Approved Polymer
Product Details
50 Litre Spill Capacity – Catches leaks, drips and small spills from two 200 litre drums to protect floors, people and drains.
DIBt-Approved Metallocene Polymer (PE-MD) – The sump polymer is approved by Germany's DIBt. It is stronger than LDPE, more flexible than HDPE and resists most oils, acids and alkalis.
Heavy Duty 1,000 kg Static Load – Carries two full steel drums of dense chemicals, 2.5 times the industrial grade.
Deep Rib Reinforced Design – Internal ribs keep the pallet stable and stop it deforming under heavy drums.

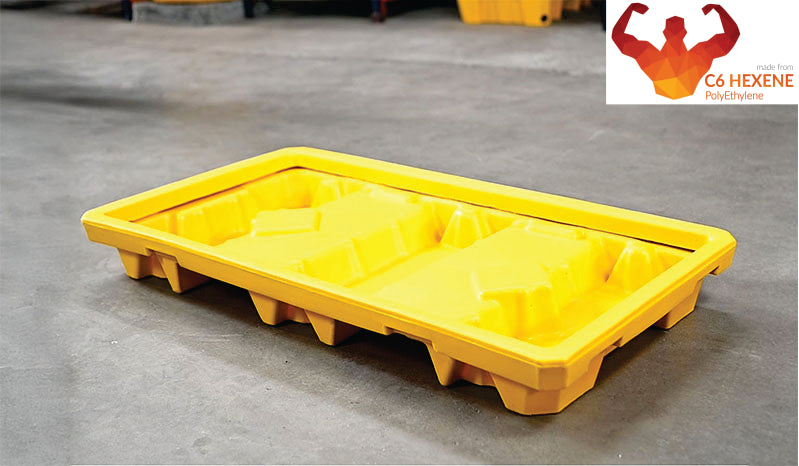

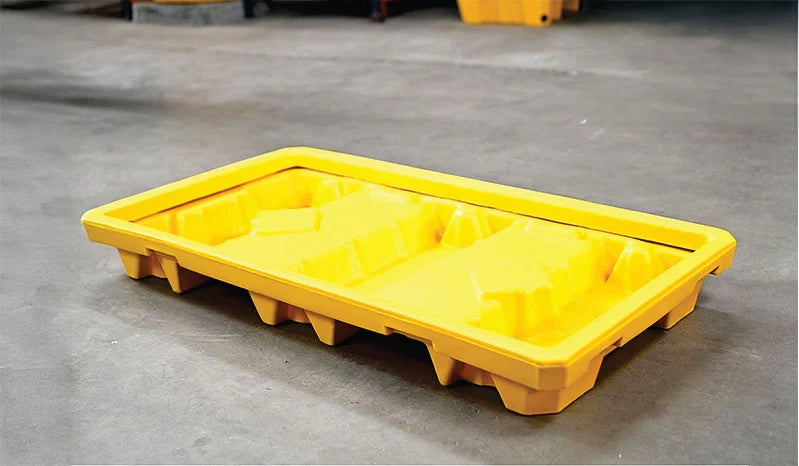

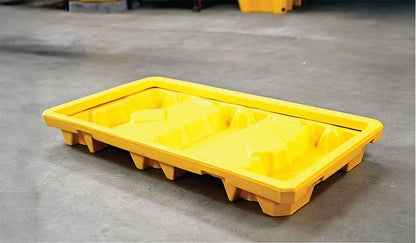

One-Piece Moulded Spill Sump – No joints to leak. Holds collected liquid as secondary containment for drum storage.
Reversible PE Grating – Drum-alignment recesses on one side, a flat surface on the other, and a built-in handle. 100% PE, so no FRP splinters.
Forklift and Pallet Truck Compatible – 2-way entry for forklifts and hand pallet trucks with 550 mm fork width.
Drain Plug Included – Empty collected liquid quickly and in a controlled way.
Nestable Design – Empty pallets stack into each other to save floor space.
Specification
| Model | Heavy Duty 2 Drum Spill Pallet – 50L |
| SKU | FSP2D15HVY |
| Drum Capacity | 2 × 200 / 210 litre drums |
| Spill Capacity | 50 Litres (Including Grating) |
| Static Load Capacity | 1,000 Kg |
| Dimensions | 1300 (L) × 690 (W) × 150 (H) mm |
| Sump Material | PE-MD, DIBt-approved metallocene polymer |
| Grating | Removable, reversible LDPE grating |
| Color | Yellow sump, black grating |
| Drain Plug | Yes |
| Forklift Entry | 2-Way (550 mm fork width) |
| Nestable | Yes |
| Suitable For | Oils, lubricants, acids, alkalis and other chemicals |
| Also Known As | Bund pallet, sump pallet, drum spill tray, secondary containment pallet |
Other sizes: 2 drum, 125 L deep sump | 4 drum spill containment pallet, 225 L | Industrial grade
FAQs
Q1. What is the spill capacity of this 2 drum spill pallet?
The sump holds 50 litres, including the grating. It catches leaks, drips and small spills from two drums. To hold the full contents of a 205 L drum, choose the 4 drum spill containment pallet with 225 L sump.
Q2. How is the DIBt grade spill pallet different from the industrial grade?
This DIBt grade pallet carries a 1,000 kg static load, 2.5 times the 400 kg of the industrial grade. Its sump is moulded from DIBt-approved metallocene polymer (PE-MD), while the industrial grade uses LDPE.
Q3. What is metallocene polymer (PE-MD)?
Metallocene polymer is polyethylene made with a metallocene catalyst, which gives a more uniform molecular structure. The PE-MD in this sump is stronger than LDPE and more flexible than HDPE, so it takes drum impacts without cracking.
Q4. Is this spill pallet DIBt approved?
The polymer is. The sump is moulded from DIBt-approved polymer, approved by DIBt (Deutsches Institut für Bautechnik), Germany's technical authority for construction products. Ask us for the approval document.
Q5. Is this a good spill pallet for acids and chemicals?
Yes. It is a chemical spill pallet for oils, lubricants, acids, alkalis and other hazardous liquids. For solvents or strong oxidising agents, send us the safety data sheet and we'll confirm suitability.
Q6. Can this spill pallet hold 200 litre or 210 litre drums?
Yes. It holds two 200 litre drums or 210 litre barrels, steel or plastic, and its 1,000 kg static load covers two full drums of dense liquids.
Q7. Can a forklift or pallet truck move this spill pallet?
Yes. It has 2-way entry for a forklift or a hand pallet truck with 550 mm fork width. Load ratings are static, so move the spill pallet when empty.
Q8. Does the spill pallet have a removable, reversible grating?
Yes. The 100% PE grating lifts out with its built-in handle for cleaning. One side has drum-alignment recesses, the other is flat for cans and smaller containers.
Q9. Does this spill pallet have a drain plug?
Yes. A drain plug is built into the sump, so you can empty collected liquid in a controlled way.
Q10. What is a bund pallet or drum spill tray?
They are other names for a spill pallet. A bund pallet, sump pallet or drum spill tray has a sump under a grating that catches leaks from drums, providing secondary containment.
Q11. What is the price of this 2 drum spill pallet?
The 2 drum spill pallet price is Rs. 8,580 plus GST and freight. Bulk and dealer pricing is available on request.
