Ideal Use Environments
Ideal Use Environments
Oil & Lubricant Drum Storage
Hazardous Liquid Handling Zones
Industrial Drum Storage Areas
Workshops & Manufacturing Plants
Industrial Grade 4 Drum Plastic Spill Pallet – 225L, LDPE
Industrial Grade 4 Drum Plastic Spill Pallet – 225L, LDPE
(GST and Freight calculated during check out)
Couldn't load pickup availability
The Frontier SpillSafe 225L is an industrial grade 4 drum plastic spill pallet and deep sump spill pallet built for full drum spill containment in oil stores: its 300 mm deep, 225 litre sump holds the entire contents of a 200 litre drum if one fails. It is the only industrial grade model that does. The pallet carries an 800 kg static load, about 200 kg per drum, for four 200 litre oil drums. Moulded in one piece, this LDPE spill pallet resists most oils, acids and alkalis, making it a dependable oil drum spill pallet and spill pallet for lubricants. Also called a bund pallet, sump pallet or drum spill tray, it works as a secondary containment pallet for workshops, oil stores and warehouses.
- 225 L spill containment capacity (including grating): holds a full 200 litre drum

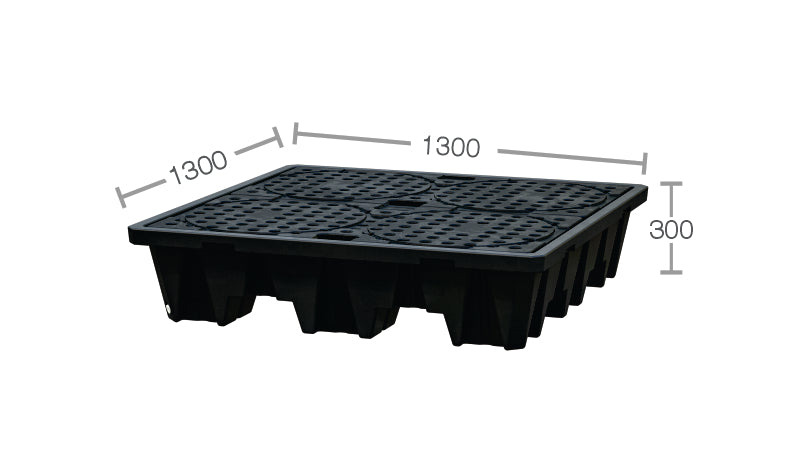

- 1300 (L) × 1300 (W) × 300 (H) mm deep sump
- 800 kg static load for four oil drums (about 200 kg per drum)
- One-piece LDPE sump and LDPE grating, black
- Reversible 100% PE grating: drum-alignment side and flat side
- Built-in grating handle, no FRP splinters
- Deep internal ribs for structural support
- Moulded sump with drain plug for controlled emptying
- 4-way forklift and pallet-truck entry (685 mm fork width)
- Nestable for space-saving storage
- For 4 × 200 / 210 litre drums (barrels), steel or plastic, holding oil or lubricants
- Used in automotive workshops, maintenance bays, DG set rooms, oil stores and warehouses
- 3.2× the containment of the 70 L model for Rs. 4,488 more
- Storing full drums of dense chemicals or acids? Choose the DIBt grade (1,200 kg load)
Durability Strength
800 kg static load, one-piece LDPE.
Spill Containment
225 L deep sump holds a full 200 litre drum.
Safety Features
100% PE grating, no fibreglass splinters.
Reversible PE Grating
Drum-alignment side and flat side.
Drain Plug For Easy Draining of Contained Liquid
Controlled emptying of the sump.
Effective Spill Management
Secondary containment for oil drums.
Request A Quote
Product: Industrial Grade 4 Drum Plastic Spill Pallet – 225L, LDPE
Product Details
225 Litre Full-Drum Sump – Holds the entire contents of one 200 litre drum, as well as everyday leaks and drips from all four 200 litre oil drums.
Industrial Grade LDPE – One-piece moulded polyethylene that resists most oils, lubricants, acids and alkalis.
800 kg Static Load – About 200 kg per drum, suited to oil and lubricant drums. For full drums of dense chemicals, choose the 1,200 kg DIBt grade.
Deep Rib Reinforced Design – Internal ribs keep the pallet stable under load.
One-Piece Moulded Spill Sump – No joints to leak. Holds collected liquid as secondary containment for oil drum storage.
Reversible PE Grating – Drum-alignment recesses on one side, a flat surface on the other, and a built-in handle. 100% PE, so no FRP splinters.
4-Way Forklift and Pallet Truck Entry – Pick up from any side with a forklift or a hand pallet truck with 685 mm fork width.
Drain Plug Included – Empty collected oil or liquid quickly and in a controlled way.
Nestable Design – Empty pallets stack into each other to save floor space.
Specification
| Model | Industrial Grade 4 Drum Plastic Spill Pallet – 225L Deep Sump |
| SKU | FSP4D30BLK |
| Drum Capacity | 4 × 200 / 210 litre drums |
| Spill Capacity | 225 Litres (Including Grating), holds a full 200 litre drum |
| Static Load Capacity | 800 Kg (about 200 kg per drum) |
| Dimensions | 1300 (L) × 1300 (W) × 300 (H) mm |
| Sump Material | LDPE, industrial grade |
| Grating | Removable, reversible LDPE grating |
| Color | Black |
| Drain Plug | Yes |
| Forklift Entry | 4-Way (685 mm fork width) |
| Nestable | Yes |
| Suitable For | Oils, lubricants and lighter liquids |
| Also Known As | Bund pallet, sump pallet, drum spill tray, oil spill tray |
Other sizes: 4 drum, 70 L low profile spill pallet | 2 drum, 125 L deep sump | DIBt grade 225 L, 1,200 kg load
FAQs
Q1. Does this 4 drum spill pallet hold a full drum?
Yes. The 300 mm deep sump holds 225 litres including the grating, enough for the full contents of one 200 litre drum. It is the only industrial grade model built for full drum spill containment.
Q2. How much containment do four oil drums need?
A widely used rule is the larger of 110% of the largest container or 25% of total volume. For four 200 litre drums that is about 220 litres, which this 225 L sump covers. Your local authority or customer audit may set a different figure.
Q3. Is this spill pallet suitable for oil drums?
Yes. It is an oil drum spill pallet built for oil and lubricant drums. Its 800 kg static load allows about 200 kg per drum, which suits most 200 litre drums of oil. Check your filled drum weight before ordering.
Q4. Can it hold four full drums of chemicals or acids?
Not at full weight. A full 200 litre drum of a water-based chemical weighs more than 200 kg. For full drums of dense chemicals or acids, choose the DIBt grade 225 L, which has the same sump and carries 1,200 kg.
Q5. Should I choose the 225 L or the 70 L industrial 4 drum spill pallet?
Both have the same 1300 × 1300 mm footprint and 800 kg load. This 225 L deep sump spill pallet gives 3.2 times the containment and holds a full drum, for Rs. 4,488 more. Choose the 70 L only for a low deck and leaks and drips.
Q6. What material is this plastic spill pallet made of?
Industrial grade LDPE (low-density polyethylene), moulded in one piece. This plastic spill pallet resists most oils, lubricants, acids and alkalis. For solvents or strong oxidising agents, send us the safety data sheet first.
Q7. Can a forklift or pallet truck move this spill pallet?
Yes. It has 4-way entry for a forklift or a hand pallet truck with 685 mm fork width. Load ratings are static, so move the spill pallet when empty.
Q8. Does the spill pallet have a removable, reversible grating and drain plug?
Yes. The 100% PE grating lifts out with its built-in handle; one side has drum-alignment recesses, the other is flat. It also has a drain plug for controlled emptying of the sump.
Q9. What is a bund pallet or drum spill tray?
They are other names for a spill pallet. A bund pallet, sump pallet or drum spill tray has a sump under a grating that catches leaks from drums, providing secondary containment.
Q10. What is the price of this 4 drum spill pallet?
The 4 drum spill pallet price for the industrial grade 225 L deep sump model is Rs. 16,896 plus GST and freight. Bulk and dealer pricing is available on request.
