Heavy Duty 4 Drum Chemical Spill Pallet – 70L, DIBt-Approved Polymer
Heavy Duty 4 Drum Chemical Spill Pallet – 70L, DIBt-Approved Polymer
(GST and Freight calculated during check out)
Couldn't load pickup availability
The Frontier SpillSafe 70L is a low profile spill pallet and heavy duty spill pallet for four 200 litre drums of oil and chemicals. Its 150 mm high, 70 litre sump catches leaks, drips and small spills, and the low deck makes drums easier to roll on and off. The pallet carries a 1,200 kg static load, about 300 kg per drum, for four full steel drums. The sump is moulded from DIBt-approved metallocene polymer (PE-MD), stronger than LDPE and more flexible than HDPE, making this 4 drum spill pallet a dependable chemical spill pallet and spill pallet for acids, alkalis and hazardous liquid storage. Also called a bund pallet, sump pallet or drum spill tray, it works as a secondary containment pallet for indoor drum storage.
- 70 L spill containment capacity (including grating)

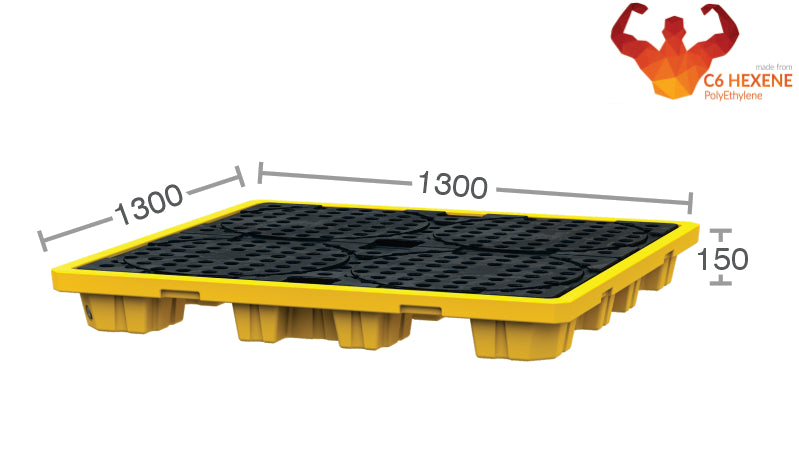

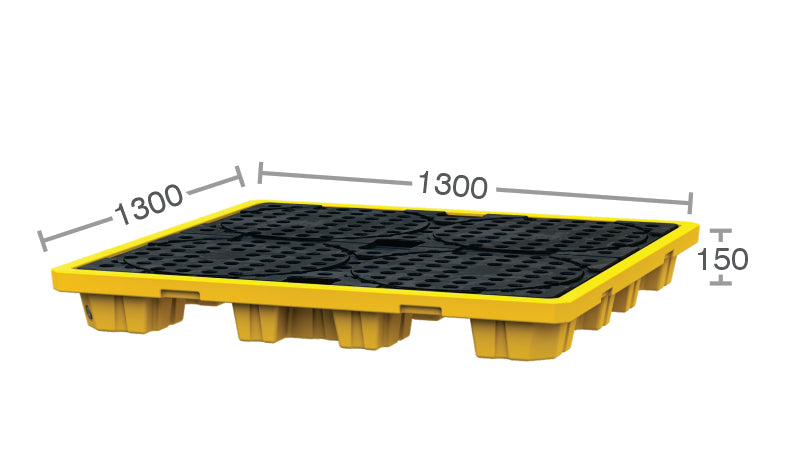

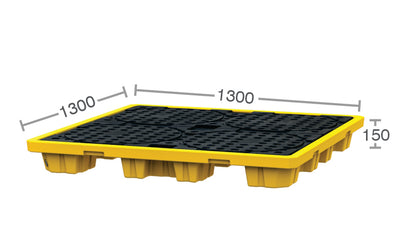

- 1300 (L) × 1300 (W) × 150 (H) mm, low profile for easy drum loading
- 1,200 kg static load for four full 200 litre drums
- Sump in DIBt-approved metallocene polymer (PE-MD)
- Reversible 100% PE grating: drum-alignment side and flat side
- Built-in grating handle, no FRP splinters
- Deep internal ribs for structural support
- One-piece moulded sump with drain plug for controlled emptying
- 4-way forklift and pallet-truck entry (685 mm fork width)
- Nestable for space-saving storage
- For 4 × 200 / 210 litre drums (barrels), steel or plastic
- Used in chemical plants, pharma units, paints and coatings units, laboratories and warehouses
- Need full-drum containment? The 225 L model holds 3.2× more for Rs. 2,910 more
Durability Strength
1,200 kg static load in DIBt-approved PE-MD.
Spill Containment
70 L low-profile sump catches leaks and drips from four drums.
Safety Features
100% PE grating, no fibreglass splinters.
Reversible PE Grating
Drum-alignment side and flat side.
Drain Plug For Easy Draining of Contained Liquid
Controlled emptying of the sump.
Effective Spill Management
Secondary containment for oil and chemical drums.
Request A Quote
Product: Heavy Duty 4 Drum Chemical Spill Pallet – 70L, DIBt-Approved Polymer
Product Details
70 Litre Low-Profile Sump – Catches leaks, drips and small spills from four 200 litre drums. The 150 mm height makes loading drums easier.
DIBt-Approved Metallocene Polymer (PE-MD) – The sump polymer is approved by Germany's DIBt. It is stronger than LDPE, more flexible than HDPE and resists most oils, acids and alkalis.
Heavy Duty 1,200 kg Static Load – Carries four full steel drums of dense chemicals, 1.5 times the 800 kg industrial grade.
Deep Rib Reinforced Design – Internal ribs keep the pallet stable and stop it deforming under heavy drums.
One-Piece Moulded Spill Sump – No joints to leak. Holds collected liquid as secondary containment for drum storage.
Reversible PE Grating – Drum-alignment recesses on one side, a flat surface on the other, and a built-in handle. 100% PE, so no FRP splinters.
4-Way Forklift and Pallet Truck Entry – Pick up from any side with a forklift or a hand pallet truck with 685 mm fork width.
Drain Plug Included – Empty collected liquid quickly and in a controlled way.
Nestable Design – Empty pallets stack into each other to save floor space.
Specification
| Model | Heavy Duty 4 Drum Spill Pallet – 70L Low Profile |
| SKU | FSP4D15HVY |
| Drum Capacity | 4 × 200 / 210 litre drums |
| Spill Capacity | 70 Litres (Including Grating) |
| Static Load Capacity | 1,200 Kg |
| Dimensions | 1300 (L) × 1300 (W) × 150 (H) mm |
| Sump Material | PE-MD, DIBt-approved metallocene polymer |
| Grating | Removable, reversible LDPE grating |
| Color | Yellow sump, black grating |
| Drain Plug | Yes |
| Forklift Entry | 4-Way (685 mm fork width) |
| Nestable | Yes |
| Suitable For | Oils, lubricants, acids, alkalis and other chemicals |
| Also Known As | Bund pallet, sump pallet, drum spill tray, secondary containment pallet |
Other sizes: 4 drum spill containment pallet, 225 L deep sump | 2 drum, 50 L | Industrial grade 4 drum 70 L
FAQs
Q1. What is the spill capacity of this 4 drum spill pallet?
The 150 mm low-profile sump holds 70 litres, including the grating. It catches leaks, drips and small spills from four drums. To hold the full contents of a 205 L drum, choose the 4 drum spill containment pallet with 225 L sump.
Q2. Should I choose the 70 L or the 225 L 4 drum spill pallet?
Both have the same 1300 × 1300 mm footprint and 1,200 kg load. Choose the 225 L deep sump for full-drum containment: 3.2 times the capacity for Rs. 2,910 more. Choose the 70 L when you need a low deck for easy drum loading and only leaks and drips to catch.
Q3. How is the DIBt grade spill pallet different from the industrial grade?
This DIBt grade pallet carries a 1,200 kg static load, 1.5 times the 800 kg of the industrial grade. Its sump is moulded from DIBt-approved metallocene polymer (PE-MD), while the industrial grade uses LDPE.
Q4. What is metallocene polymer (PE-MD)?
Metallocene polymer is polyethylene made with a metallocene catalyst, which gives a more uniform molecular structure. The PE-MD in this sump is stronger than LDPE and more flexible than HDPE, so it takes drum impacts without cracking.
Q5. Is this spill pallet DIBt approved?
The polymer is. The sump is moulded from DIBt-approved polymer, approved by DIBt (Deutsches Institut für Bautechnik), Germany's technical authority for construction products. Ask us for the approval document.
Q6. Is this a good spill pallet for acids and chemicals?
Yes. It is a chemical spill pallet for oils, lubricants, acids, alkalis and other hazardous liquids. For solvents or strong oxidising agents, send us the safety data sheet and we'll confirm suitability.
Q7. Can this spill pallet hold 200 litre or 210 litre drums?
Yes. It holds four 200 litre drums or 210 litre barrels, steel or plastic, and its 1,200 kg static load allows about 300 kg per drum.
Q8. Can a forklift or pallet truck move this spill pallet?
Yes. It has 4-way entry for a forklift or a hand pallet truck with 685 mm fork width. Load ratings are static, so move the spill pallet when empty.
Q9. Does the spill pallet have a removable, reversible grating and drain plug?
Yes. The 100% PE grating lifts out with its built-in handle; one side has drum-alignment recesses, the other is flat. It also has a drain plug for controlled emptying of the sump.
Q10. What is a bund pallet or drum spill tray?
They are other names for a spill pallet. A bund pallet, sump pallet or drum spill tray has a sump under a grating that catches leaks from drums, providing secondary containment.
Q11. What is the price of this 4 drum spill pallet?
The 4 drum spill pallet price for the 70 L low-profile model is Rs. 13,990 plus GST and freight. Bulk and dealer pricing is available on request.
